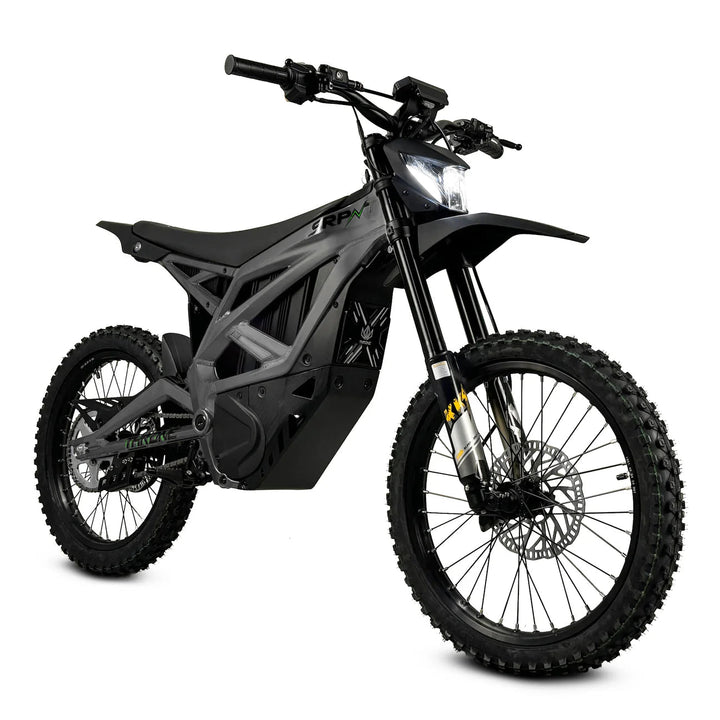

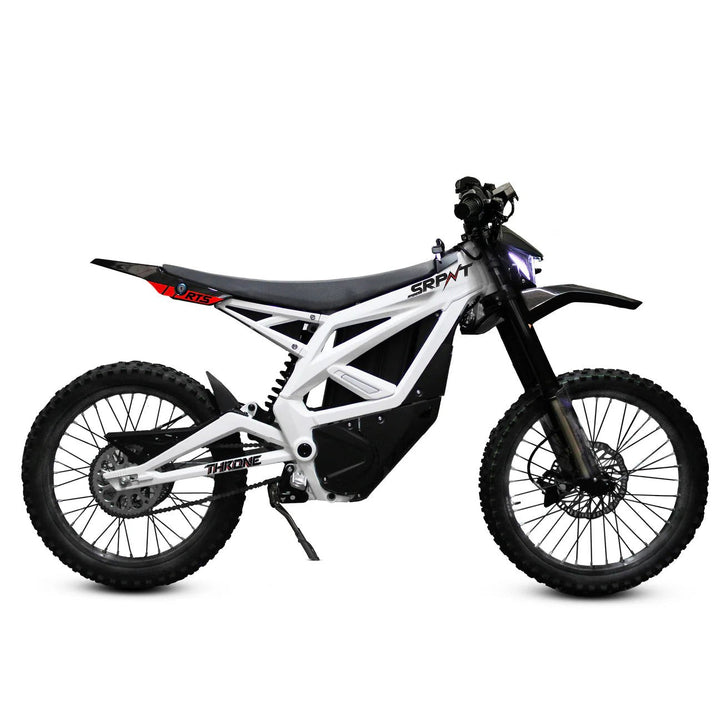

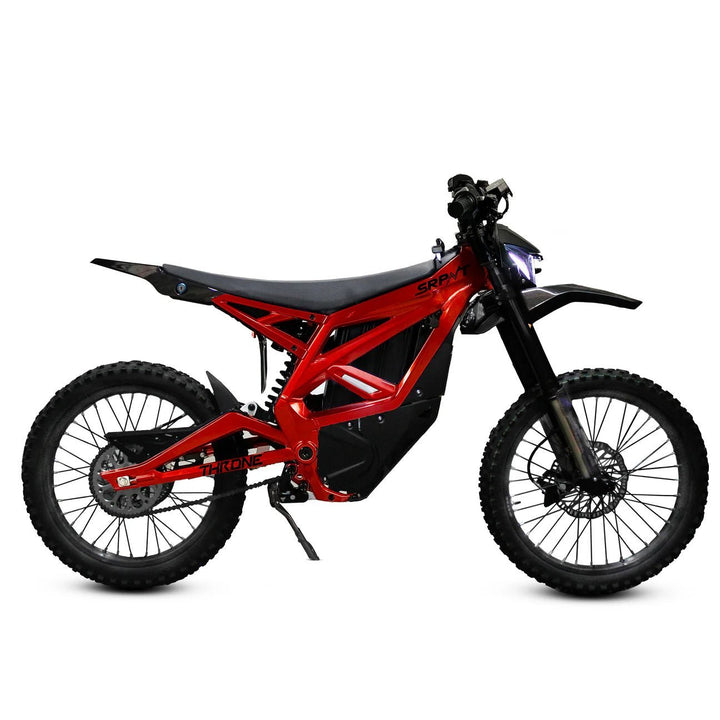

THRONE CYCLES THRONE SRPNT 10000 W Moto eBike 70x100 / 80x100 0ff-road Electric Dirt Bike
The Throne Cycles SRPNT Moto eBike is a powerful electric dirt bike designed for off-road adventures. With a 10000W motor, 72V 40Ah battery, and 19-inch off-road tires, this electric moto style bike reaches speeds of 55-60 mph and covers over 60 miles per charge. Ride with performance, style, and efficiency in various terrains.
*Bike in a box is not assembled, tuned or road tested *Bike in a box includes manufacturers limited warranty

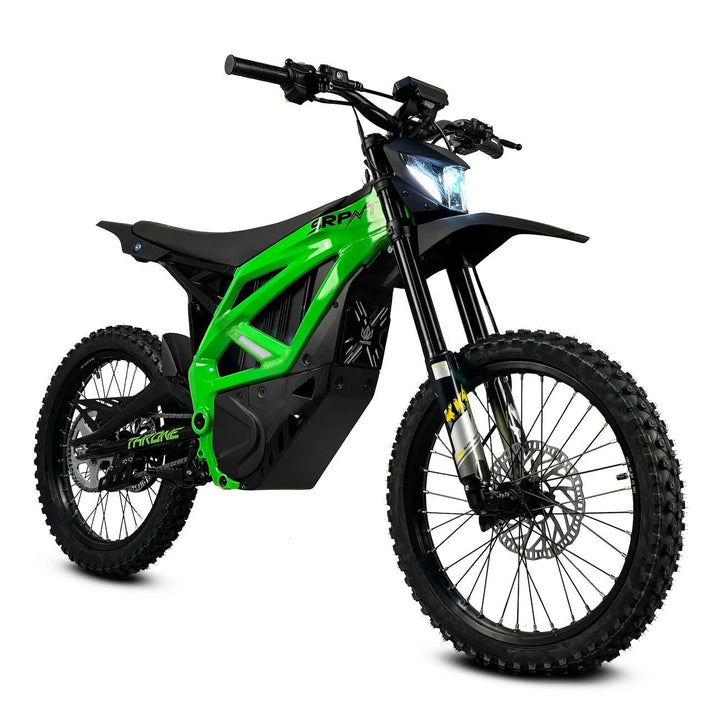

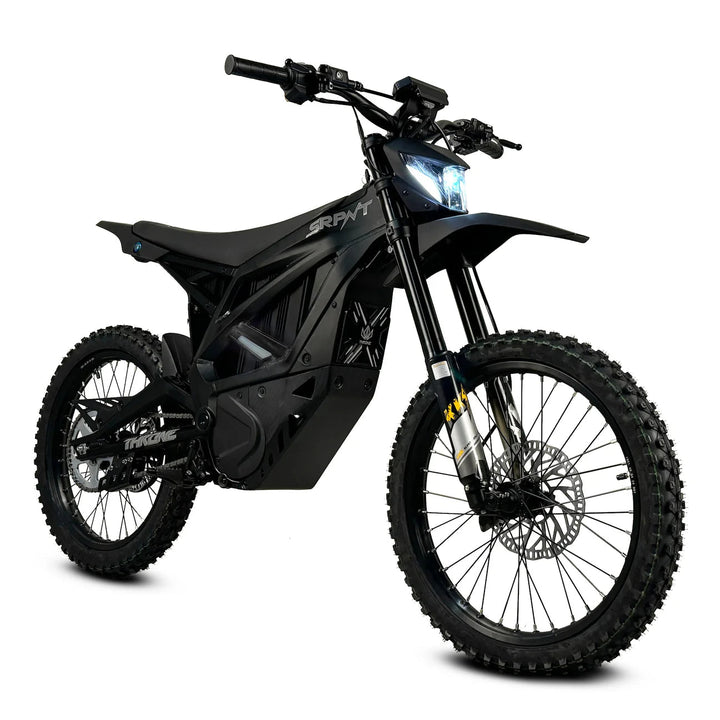

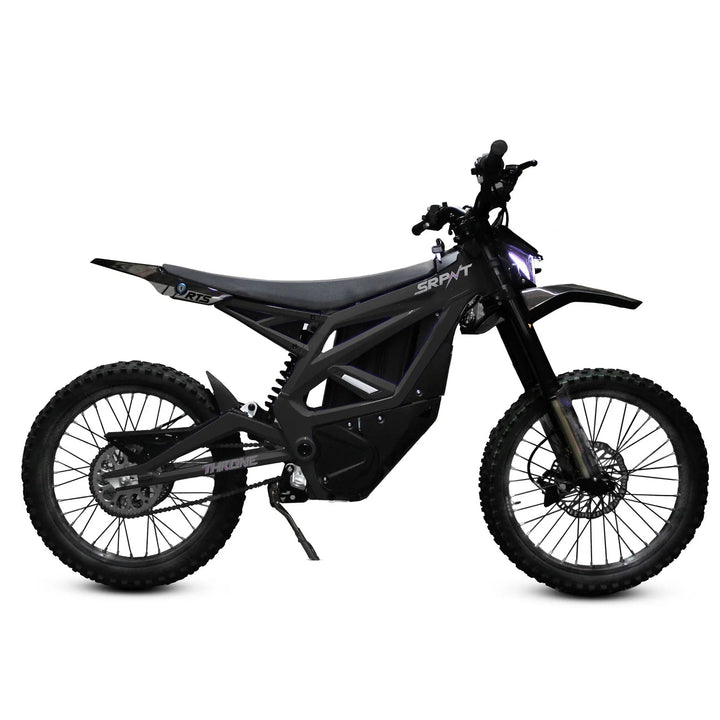

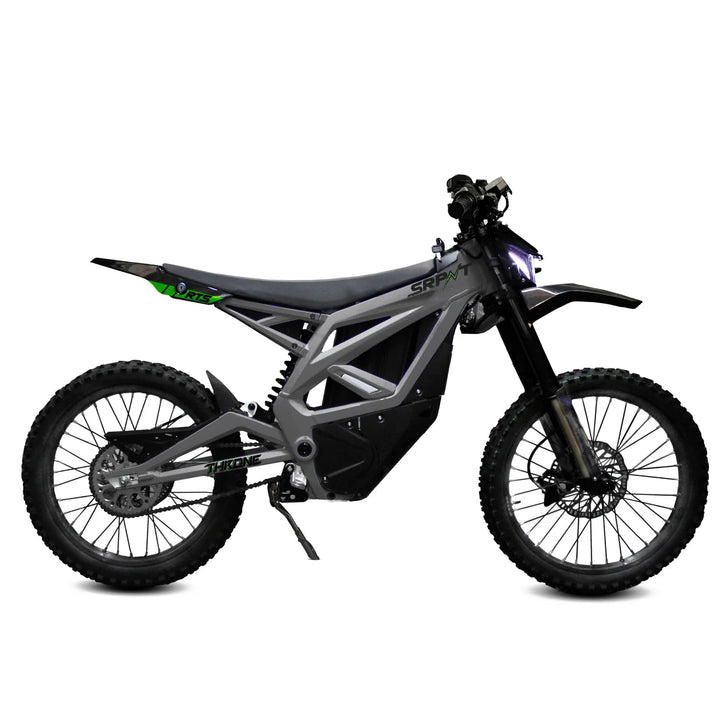

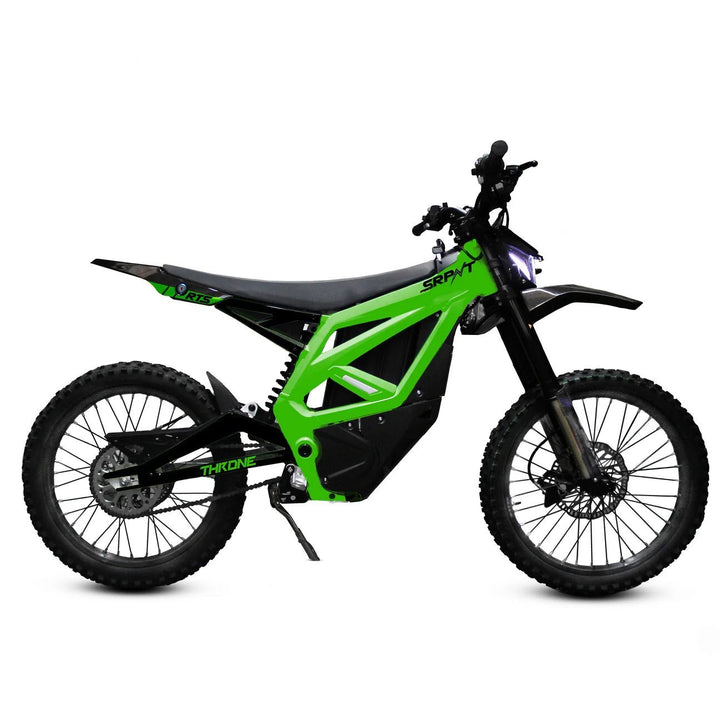

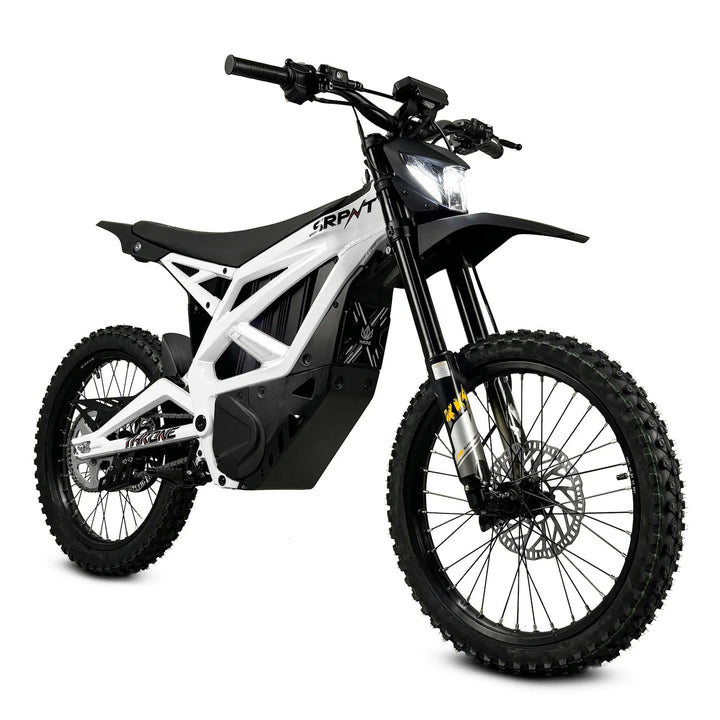

The THRONE CYCLES THRONE SRPNT Moto eBike is a 0ff-road tire electric bike with a powerful 10000 W motor and a long distance 72v 40 ah battery. With 19 inches 0ff-road tires, Single Speeds and Hydraulic brakes this Electric Dirt Bike is a , with a top speed up to 55-60 mph. An optimal distance of 60+ miles and charge time of 3-4 hrs. This THRONE CYCLES THRONE SRPNT Moto electric bike is 160lbs with a maximum cargo weight of 320lbs. The THRONE CYCLES THRONE SRPNT comes in the following colors: White,Monster Green,Orange Crush,Concrete Grey,Black Strike,,.
| MOTOR | |
| Motor Type: | PMSM |
| Mounting Position: | Mid |
| Weight / Motor External Diameter: | 9.55kg / 155mm |
| Motor Axial Length: | 130mm |
| Peak Efficiency: | 98% |
| Cooling Method: | Air-Cooled |
| CONTROLLER | |
| Controller Type: | FOC |
| Dimensions: | 160mm x 142mm x 79mm |
| Peak Efficiency: | 98.50% |
| Power Modes: | Eco, High, and Sport |
| MOTOR POWER SYSTEM | |
| Rated Voltage: | 72V (DC) |
| Rated Torque / Peak Torque: | 95115Nm |
| Motor Shaft Output Torque @ 1000RPM: | 460Nm |
| Rated Rotation Speed: | 5400rpm |
| Peak Efficiency: | 97% |
| Range of Efficiency (≥80): | 3Nm - 45Nm |
| TRANSMISSION | |
| Gear Ratio: | 13:51 |
| Transmission: | Motorcycle Chain & 420 Drive Chain |
| Model: | German Continental Brand, 8M CXA |
| ELECTRICAL COMPONENTS | |
| Horn: | CQC |
| Battery: | 72V 40AH Lithium Battery with 176 LG Cells |
| Battery Life Time: | 500 Cycles |
| Battery Charge Level: | Integrated Battery LCD Display |
| Charger: | 9A |
| Charging Time: | 3.5 Hours |
| USB Connection: | Type C |

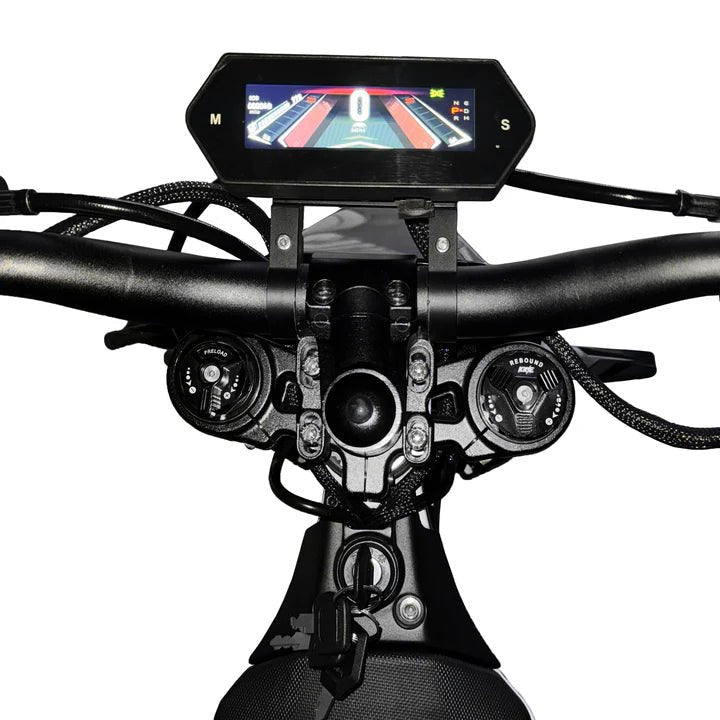

| Speedometer: | TFT |

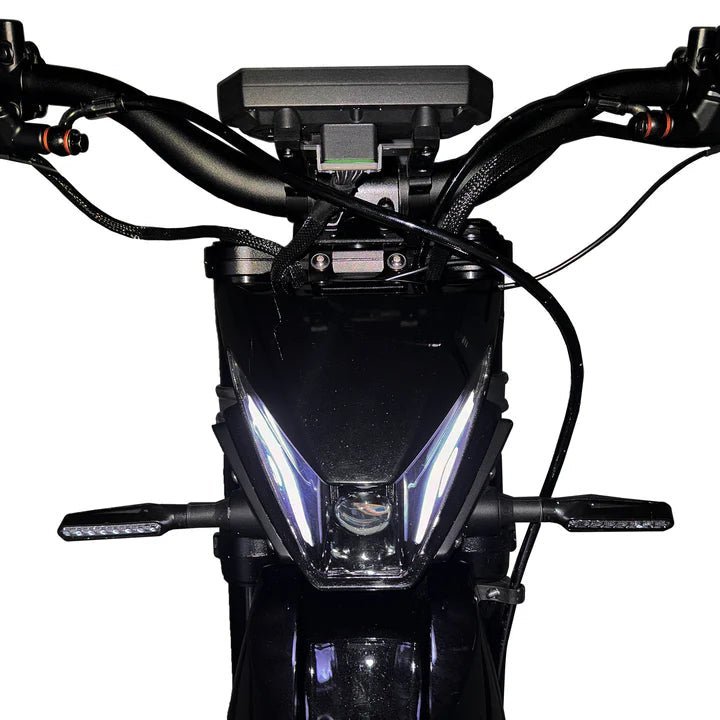

| LED Headlight & Rear Light: | Yes |
| FRAME DETAILS | |
| Chassis - Swing Arm Material: | No.6061 T4&T6 Aluminum |
| Chassis Construction Method: | Forged by 3000 Tons of Pressure |
| Chassis Surface & Color Processing: | Baked Paint |
| Front Suspension: | Inverted Suspension Fork with 200mm Travel |
| Rear Shock Absorber: | KKE Suspension Link System |
| Wheel Type & Size: | Front/Rear :1.4-19 , 1.6-19 Alloy Hubs |
| DIMENSIONS | |
| Ground Clearance: | 270mm |
| Wheelbase: | 1250mm |
| Seat Height: | 85cm |
| Vehicle Dimensions: | 1880mmX805x1130mm |
| DRIVE | |
| Top Speed: | 55-60 mph |
| Net Weight | 160lb |
| Rear Sprocket | 51T |
| Side Stand | Yes with Kill Switch |
| Battery Usage | 600 Uses |
| Carry Capacity | 320lb |
| Color |
White - SHIPPING EARLY JANUARY, Black, Red, Green, Grey |
|---|
