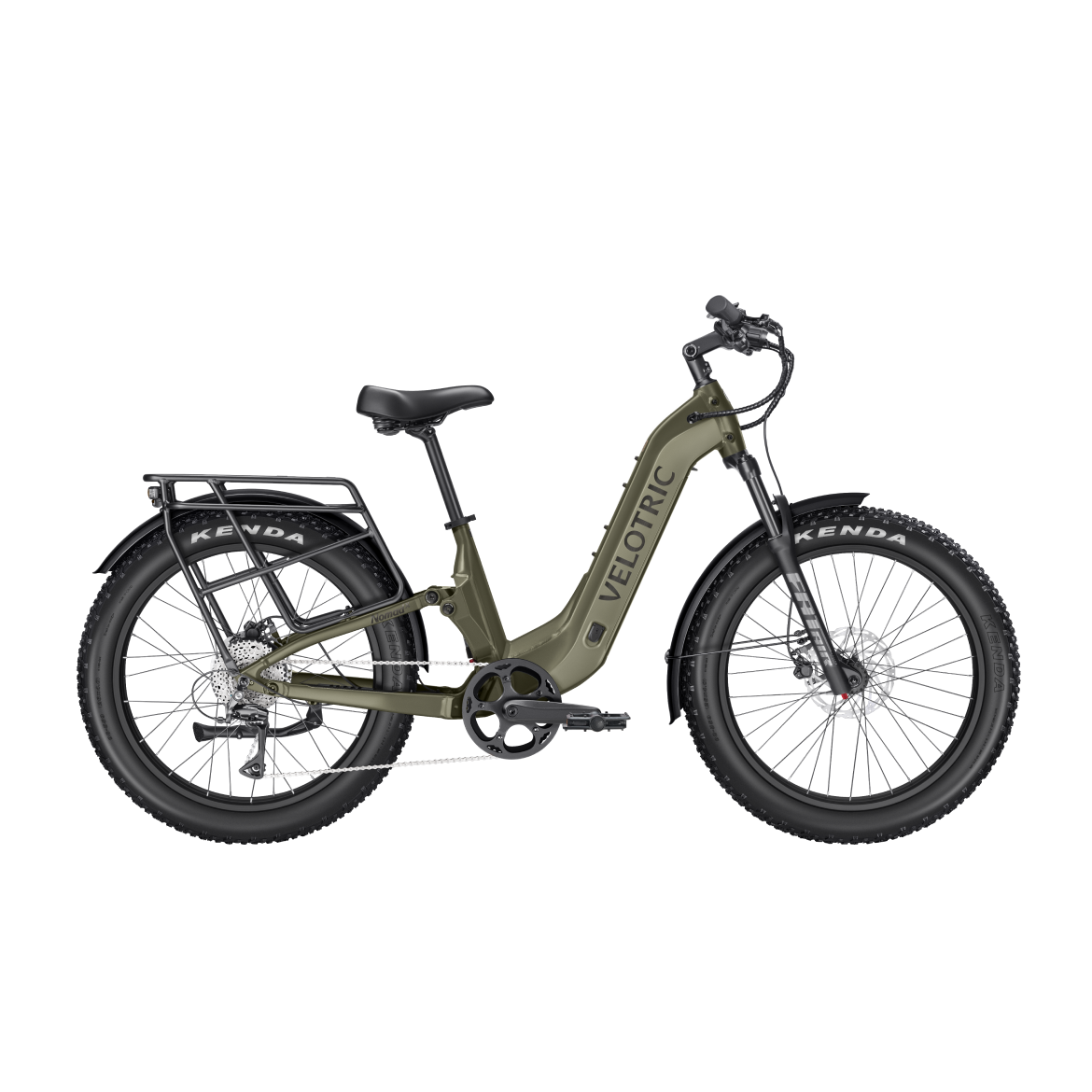

Velotric Nomad 2X - Step Thru - Sage - In a Box Electric Bike
Velotric authorized dealer in San Diego & EscondidoVelotric warranty & support for Ready to Ride eBikes
eBike Super Shop works with riders across Escondido and San Diego through in-store support, local pickup availability, and shipping across the USA.
Designed with compact urban riding in mind, the Velotric Nomad 2X - Step Thru - Sage - In a Box combines approachable size, practical utility, and everyday electric-bike convenience. Its responsive motor works with responsive power delivery and pedal-assist support to provide smooth assistance up to city-friendly speeds, while a practical battery system and useful everyday range make it a strong fit for shorter daily trips. Its compact proportions help keep the ride manageable and approachable. compact wheels and city-friendly proportions help the bike stay practical for everyday use.
Key Features
Full-Suspension Comfort: Air suspension fork with 120mm travel (lock-out, nutted, rebound adjustable) paired with a DNM rear air shock and 80mm rear wheel travel for a smoother ride on uneven surfaces.
750W Hub Motor with High Torque: 48V, 750W rear hub motor producing 105Nm of torque with up to 1400W peak power.
Long-Range 801.6Wh Battery: 48V 16.7Ah (801.6Wh) battery with IPX7 rating and UL 2271 certification for dependable all-conditions use.
SensorSwap™ (Torque/Cadence): Includes both torque and cadence sensor support to match different riding styles and terrain.
High Capacity for Cargo & Riders: 560 lbs max load capacity with a 120 lbs rear rack capacity (MIK HD compatible alloy rear rack).
26x4.0 Fat Tire Grip: KENDA 26x4.0" eBike puncture-resistant tires for added traction and stability.
Class 1/2/3 Capable: Default 20 MPH with adjustable range from 12–28 MPH.
Hydraulic Disc Braking: Tektro hydraulic disc brakes with 203mm front and 180mm rear rotors, plus brake levers with power cutoff.
Integrated Lighting & Visibility: 130 Lux / 500 LM light-sensing front LED and an integrated rear rack light with braking indicator and turn signals (steady/flash).
Two Frame Styles (Fit Differences): Available as Step-Thru (rider height 4'11''–5'10'') and High-Step (rider height 5'10''–6'5'').
Specifications
| Feature | Details |
|---|---|
| eBike Type | Electric bike |
| Frame Styles | Step-Thru / High-Step |
| User Height Range | Step-Thru: 4'11'' - 5'10'' / High-Step: 5'10'' - 6'5'' |
| Frame | Triple-Butted Aluminum Alloy, rear wheel 80mm travel |
| Fork | Air suspension, 120mm travel with lock-out, nutted, rebound adjustable |
| Rear Shock | DNM air suspension, 165mm x 38mm travel |
| Motor Hub | 48V, 750W, 105Nm (1400W peak listed) |
| Battery | 48V, 16.7Ah (801.6Wh), IPX7, certificated by UL 2271 |
| Cell | Samsung/LG 21700 cell, certificated by UL 2580 |
| Charger | 48V, 3.0A fast charger |
| Display | 3.5" full color, high brightness, Bluetooth, adjustable angle |
| Sensor | Torque and cadence sensor |
| USB Port | USB Type-C phone charge |
| Throttle Assist | Trigger-control, removable |
| Pedal Assist | 3 riding modes x 5 PAS levels |
| Walk Mode | 2.9 MPH |
| Front Light | Light sensing 130 Lux / 500 LM high-output integrated LED, adjustable angle |
| Rear Light | Braking indicator, turn signal, rear light steady/flash, integrated with rear rack |
| App & Apple Find My™ | APP OTA & Find My |
| Max Speed (Default) | 20 MPH |
| Max Speed Adjustable Range | 12~28 MPH |
| Class | 1/2/3 |
| Throttle Range | 50 miles |
| Pedal Assist Range | 75 miles |
| Chainrings | 48T |
| Crankset | Aluminum alloy, 170mm |
| Freewheel | 8-speed, 11-40T |
| Chain | 8-speed |
| Rear Derailleur | SHIMANO 8-speed |
| Shift Lever | SHIMANO 8-speed |
| Brake | Tektro hydraulic disc brake |
| Rotors | 203mm front / 180mm rear |
| Rims | Aluminum alloy |
| Front Hub | Aluminum alloy, nutted |
| Tire | KENDA 26x4.0" eBike puncture-resistant tires |
| Handlebar | Aluminum alloy, Φ31.8mm, 700mm |
| Grips | Durable ergonomic grips, lockable |
| Stem | Adjustable, aluminum alloy, Φ31.8mm, 60mm (ST) / 90mm (HS) |
| Saddle | VELOTRIC comfort ergonomic seat |
| Seatpost | Aluminum alloy, Φ30.9mm |
| Clamp | Aluminum alloy, quick release |
| Fenders | Front and rear full coverage |
| Rear Rack | MIK HD compatible alloy |
| Pedals | Plastic |
| Kickstand | Aluminum alloy, included, rear mount |
| eBike Weight | 80 lbs |
| Max eBike Load | 560 lbs |
| Rear Rack Load Capacity | 120 lbs |
| UL Certification | UL 2849 |
| ISO Standard | ISO 4210 |
| Geometry (Step-Thru) | Reach 420mm; Handlebar Height 1080mm; Wheelbase 1330mm; Stand-Over Height 450mm; Min Saddle Height 795mm; Max Saddle Height 1100mm; Total Length 2065mm |
| Geometry (High-Step) | Reach 460mm; Handlebar Height 1080mm; Wheelbase 1315mm; Stand-Over Height 780mm; Min Saddle Height 860mm; Max Saddle Height 1330mm; Total Length 2085mm |
Manufacturers Warranty: https://www.velotricbike.com/pages/warranty
User Manual: https://cdn.shopify.com/s/files/1/0877/9435/2404/files/eBike_Velotric_Nomad_2X_User_Manual.pdf?v=1770585353
Assembly & Build Options
The “In a Box” option is delivered in the manufacturer’s original packaging and arrives unassembled. Professional assembly is required prior to riding, including proper installation, torque verification, and a complete safety inspection of all components.
This option does not include assembly services, safety inspection, tuning, or ongoing service support from our retail location. All warranty claims, technical support, and product-related concerns must be handled directly with Velotric through the manufacturer’s official support channels.
Why Choose This Model?
The Velotric Nomad 2X - Step Thru - Sage - In a Box stands out as a compact electric bike that keeps everyday riding approachable without feeling stripped down. Its responsive motor, support up to controlled, compact wheel setup, its battery system, and useful daily range all work together to create a package that feels practical for errands, neighborhood trips, and routine city use.
At eBike Super Shop, this model makes particular sense for riders who want manageable sizing, straightforward controls, and useful features such as disc brakes, a rear rack.
Explore More
Explore more commuter-friendly, compact, and city-ready eBikes at eBike Super Shop, where everyday practicality, approachable design, and useful electric mobility remain central to the lineup.
eBike Super Shop offers riders access to broad model variety, trusted eBike brands, and local support in Escondido, San Diego, and the wider Southern California area, with shipping available across the USA.
*Bike in a box is not assembled, tuned or road tested *Bike in a box includes manufacturers limited warranty
