eBike Himiway D5 Pro - Step Over - White - In a Box

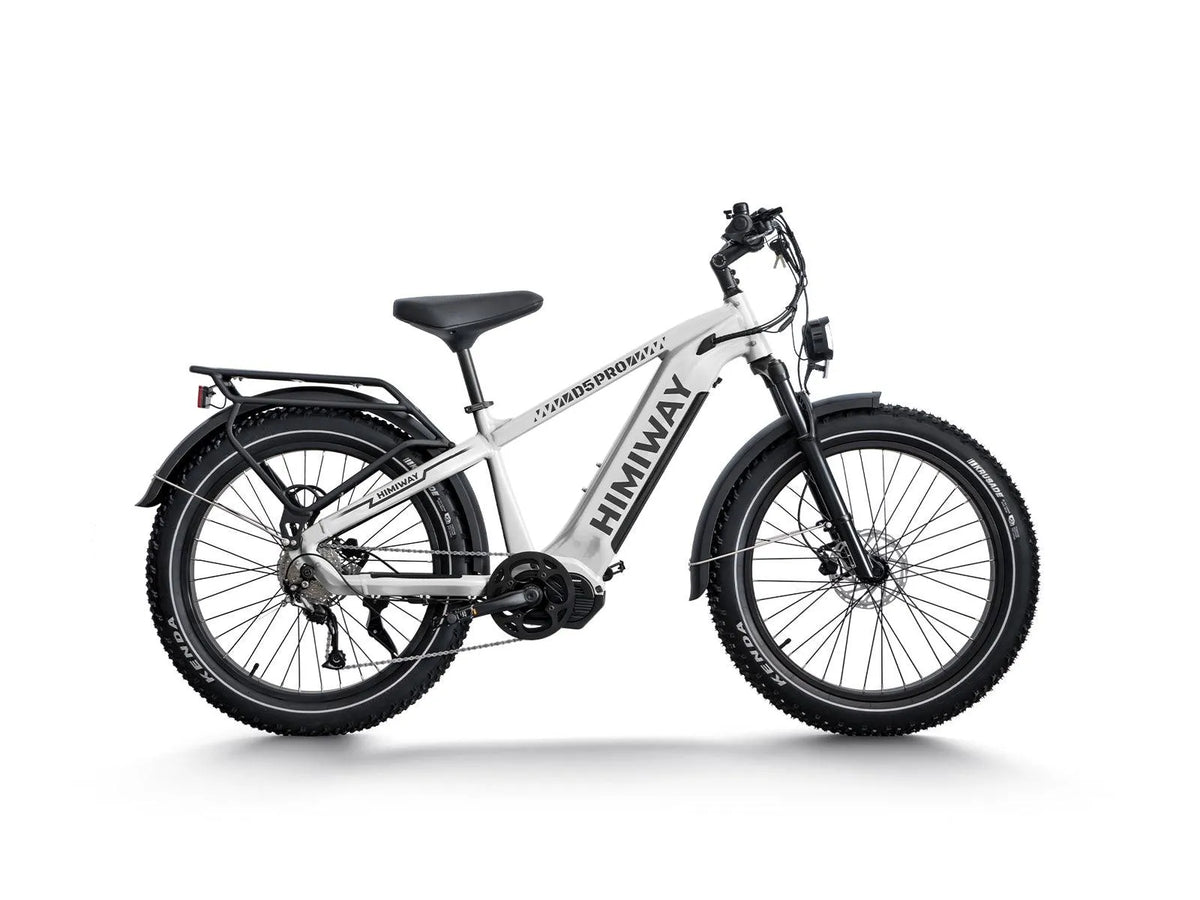

Himiway D5 Pro - Step Over - White - In a Box Electric Bike
Himiway authorized dealer in San Diego & EscondidoHimiway warranty & support for Ready to Ride eBikes
eBike Super Shop works with riders across Escondido and San Diego through in-store support, local pickup availability, and shipping across the USA.
Designed with compact urban riding in mind, the Himiway D5 Pro - Step Over - White - In a Box combines approachable size, practical utility, and everyday electric-bike convenience. Its responsive motor works with responsive power delivery and electric assist to provide smooth assistance up to city-friendly speeds, while a practical battery system and 60-80 miles make it a strong fit for shorter daily trips. Its compact proportions help keep the ride manageable and approachable. compact wheels and city-friendly proportions help the bike stay practical for everyday use.
Key Features
- Torque-Sensing Mid-Drive Performance: 500W mid-drive motor with torque sensor for natural-feeling assist, strong hill climbing, and quick acceleration (up to 1300W peak power) with 130 Nm of torque.
- 960Wh Samsung/LG Removable Battery: 48V 20Ah integrated, removable battery rated for 60–80 miles of range, designed for stability and safety, and engineered to maintain 80% capacity after 1000 charges.
- All-Terrain 26" × 4.0 Fat Tires: Kenda 26*4.0 K-shield fat tires for grip and traction across gravel roads, sandy ground, mountain terrain, wetland conditions, snow, and grass.
- Hydraulic Braking Control: Tektro HD-E3520 hydraulic disc brakes paired with 180mm rotors front and rear for strong, consistent stopping performance.
- Front Suspension with Tunability: TRAMA FAT34-PLS-26" alloy front suspension fork with 100mm travel, lockout, and adjustment for comfort and control on rougher surfaces.
- Shimano 9-Speed Drivetrain: Shimano Altus M2000 9-speed groupset with Shimano CS-HG201-9 11–36T freewheel and KMC E9 EPT chain for reliable shifting across varied terrain.
- Integrated Visibility: 48V LED light plus a 48V 500LM luminosity spotlight, and a customized integrated brake light.
- High-Capacity Frame & Ride Fit: Upgraded aerospace-grade 6061 aluminum frame (2X thicker) supports up to 400 lb payload; recommended rider height 5′3″–6′5″.
- Tech-Ready Display: KD718-P LCD display with Type-c charger.
- Thumb Throttle: Thumb throttle for added control and convenience when needed.
Specifications
| Feature | Details |
|---|---|
| Model / Variants | D5 Pro (Step-over) |
| Recommended Height | 5′3″ ~ 6′5″ |
| Frame | 6061 Aluminum frame |
| Headset | Neco H156EM 28.6*44-56*30 |
| Fork | TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle |
| Shock | Alloy front suspension fork with lockout and adjustment |
| Front Wheel | Rim: MD-147 26*4.0"*36H*12G A/V Spoke: 12G 255/256L stainless (304M) Hub: MB015-92 M9*12G*135*145W |
| Rear Wheel | Rim: MD-147 26*4.0"*36H*12G A/V Spoke: 12G 256/257L stainless (304M) Hub: GSMB019R-190F-GM14 |
| Tires | Kenda 26*4.0 |
| Battery | Samsung/LG 48V 20Ah |
| Motor | 500W mid-drive motor |
| Controller | 48V/22A |
| Display | KD718-P LCD display with Type-c charger |
| Throttle | Thumb throttle |
| Sensors | Torque sensor丨shifting sensor speed sensor丨brake sensor |
| Crankset | Crankarm: Prowheel 170mm / Chain ring: 44T BCD104 |
| Freewheel | Shimano CS-HG201-9 11-36T |
| Chain | KMC E9 EPT 124L |
| Groupset | Shimano altus M2000 9 speed |
| Front Brake | Tektro HD-E3520 hydraulic brake |
| Rear Brake | Tektro HD-E3520 Hydraulic Disc Brake |
| Rotors | Tektro TR180-52 F:180mm R:180mm |
| Stem | Zoom TDS-C269-8FOV 31.8*90mm |
| Handlebar | Promax HB-3188 22.2*31.8*700mm |
| Seatpost | Himiway Seatpost |
| Saddle | Himiway Saddle |
| Pedal | Aluminum pedal |
| Lights | 48V LED light |
| Kickstand | Heavy-duty aluminum kickstand |
| Range | 60-80 miles |
| Charger | U.S. standard 3.0 A fast charger |
| Weight | 79 lb. (with battery) |
| Max. Payload Capacity | 400 lb. |
| Safety Certification | UL 2849 / UL 2271 |
| Geometry (in.) | A – total length: 78.7 B – handlebar height: 47 C – handlebar length: 28 D – wheelbase: 49.2 E – wheel diameter: 28.7 F – minimum seat height: 20.9 G – maximum seat height: 31.4 H – chain stay length: 19 I – frame stack: 24.6 J – frame reach: 17.8 K – effective top tube length: 24.4 L – head tube length: 5.5 M – head angle: 65° N – standover height: SO 31.1 |
Assembly & Build Options
The “In a Box” option is delivered in the manufacturer’s original packaging and arrives unassembled. Professional assembly will be required prior to riding, including proper installation, torque verification, and a complete safety inspection of all components.
This option does not include assembly services, safety inspection, tuning, or ongoing service support from our retail location. All warranty claims, technical support, and product-related concerns must be handled directly with Himiway through the manufacturer’s official support channels.
Warranty & Manual
Manufacturers Warranty: https://himiwaybike.com/pages/warranty
User Manual: https://cdn.shopify.com/s/files/1/0877/9435/2404/files/Himiway_D5_pro_step-thru_manual.pdf?v=1776635076
Why Choose This Model?
The Himiway D5 Pro - Step Over - White - In a Box stands out as a compact electric bike that keeps everyday riding approachable without feeling stripped down. Its responsive motor, support up to controlled, compact wheel setup, its battery system, and 60-80 miles all work together to create a package that feels practical for errands, neighborhood trips, and routine city use.
At eBike Super Shop, this model makes particular sense for riders who want manageable sizing, straightforward controls, and useful features such as disc brakes.
Explore More
Explore more commuter-friendly, compact, and city-ready eBikes at eBike Super Shop, where everyday practicality, approachable design, and useful electric mobility remain central to the lineup.
eBike Super Shop offers riders access to broad model variety, trusted eBike brands, and local support in Escondido, San Diego, and the wider Southern California area, with shipping available across the USA.
*Bike in a box is not assembled, tuned or road tested *Bike in a box includes manufacturers limited warranty
