Sold outPre order

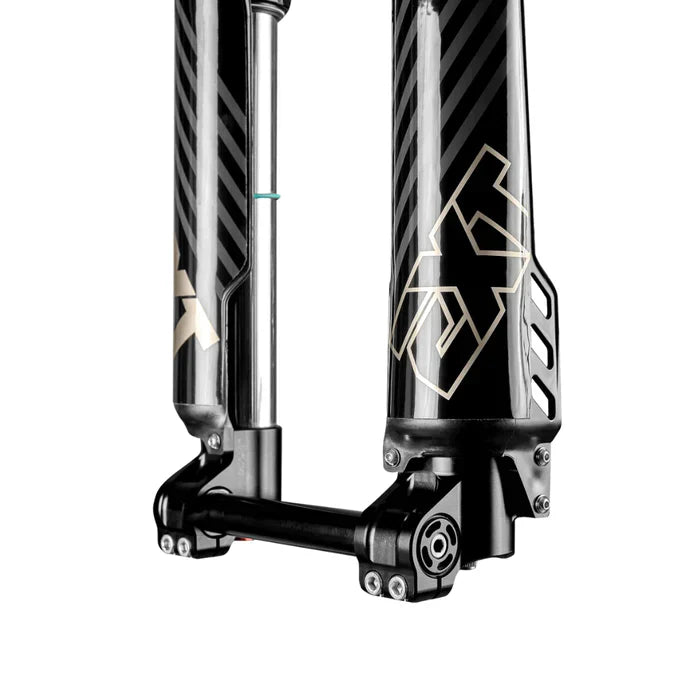

EXT FERRO E-MX FORK
$2,000.00
- ∅36mm hard chromed steel stanchions (heat treated 42CrMo4) with Superfinish surface treatment
- Dedicated triple clamp design uppers (7000 aluminium series)
- HS3 system: twin positive air system ¬+ 1 large negative self-balancing air chamber, allows to get an optimum level of support through all the travel
- Chromed steel air spring shaft with Superfinish surface treatment
- High-flow 3-way adjustable cartridge with independent High/Low speed compression and rebound adjustments
- External pressure air release system on both legs
- Twin hexagonal floating axle, boost compatible ∅20mm
- Air spring and cartridge radial guide system with bespoke aeronautical seals (minimize friction on side loads)
- Large piston design for best damping control and separate IFP/coil energized compression valve
- No cavitation and low hysteresis
- Self-hydraulic cartridge bleeding
- Dedicated Mobile Sliding DU guiding system with super-long static overlap (for maximum guidance and best torsional rigidity). (CGB Continuously Guided Bushing system, increase stiffness)
- 205 mm of travel and 44 mm offset
- 200 mm post mount brake
- Weight 4000gr
- Pressure release one way valves on both legs
∅36mm hard chromed steel stanchions (heat treated 42CrMo4) with Superfinish surface treatment Dedicated triple clamp design uppers (7000 aluminium series) HS3 system: twin positive air system ¬+ 1 large negative self-balancing air...
*Bike in a box is not assembled, tuned or road tested *Bike in a box includes manufacturers limited warranty
Description
- ∅36mm hard chromed steel stanchions (heat treated 42CrMo4) with Superfinish surface treatment
- Dedicated triple clamp design uppers (7000 aluminium series)
- HS3 system: twin positive air system ¬+ 1 large negative self-balancing air chamber, allows to get an optimum level of support through all the travel
- Chromed steel air spring shaft with Superfinish surface treatment
- High-flow 3-way adjustable cartridge with independent High/Low speed compression and rebound adjustments
- External pressure air release system on both legs
- Twin hexagonal floating axle, boost compatible ∅20mm
- Air spring and cartridge radial guide system with bespoke aeronautical seals (minimize friction on side loads)
- Large piston design for best damping control and separate IFP/coil energized compression valve
- No cavitation and low hysteresis
- Self-hydraulic cartridge bleeding
- Dedicated Mobile Sliding DU guiding system with super-long static overlap (for maximum guidance and best torsional rigidity). (CGB Continuously Guided Bushing system, increase stiffness)
- 205 mm of travel and 44 mm offset
- 200 mm post mount brake
- Weight 4000gr
- Pressure release one way valves on both legs
Additional Information
| Size |
Flat Crown 19" Wheel, Drop Crown 21" Wheel |
|---|
